Bleed Valves

Bleed Valves
Our Bleed Valves offer an easy solution for the release of excess pressure from a system. These compact and durable valves have been tested to assure dependability and maximum flow. Features and benefits of our bleeder valves include:
  • Electroless nickel plated for corrosion resistance
  • 10-32 UNF, 1/4 NPT and 1/8 NPT thread sizes available
  • Operating pressure of up to 125 psi
  • Release 100 in³ in 4 seconds
  • Durable brass construction

View the product information below for additional details and request a quote for your bleed valves today. If you need additional information or have questions, please contact us for assistance.

Features
  • Electroless nickel plated for corrosion resistance
  • Release 100 in3 in 4 seconds
  • Durable construction

    Performance Data

    • Operating Pressure: 0 to 125 psi
    • Flow Rate: Download Performance Data for complete valve specifications.

    CAD Library







    Our Bleed Valves Provide Effective Removal of Trapped Air

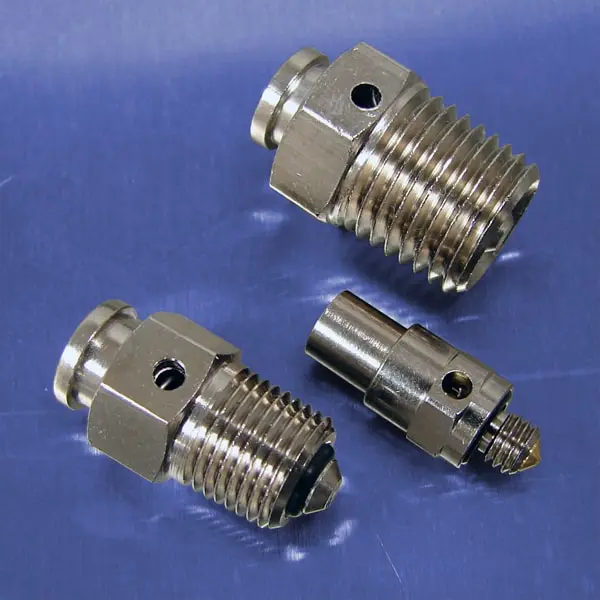

    Bleeder valves from Pneumadyne have an operating temperature of -20 to 160°F and are offered in 10-32 UNF, 1/8 NPT and 1/4 NPT thread sizes. They feature an electroless nickel plated brass body for corrosion resistance with Buna-N seals and a brass stem.

    Our bleeder valve options include:
    • 10-32 UNF Bleed Valve: Features a 10-32 thread mount with 5/16” hex and actuates at a pressure force of 3lbs at 50 psi and 3-3/4lbs at 125 psi. Provides an exhaust time of .06 in 3/sec 100-10 psi and features a captive O-ring design for a lead resistant fit.
    • 1/8 NPT Bleed Valve: Features a 1/8 NPT threaded mount with 7/16” hex and actuates at a pressure force of 3lbs at 50 psi and 6-1/2lbs at 125 psi. Provides an exhaust time of .04 in 3/sec 100-10 psi.
    • 1/4 NPT Bleed Valve: Features a 1/4 NPT thread mount with 9/16” hex and actuates at a pressure force of 3lbs at 50 psi and 6-1/2lbs at 125 psi. Provides an exhaust time of .04 in 3/sec 100-10 psi.

    Contact Pneumadyne for Bleed Valves and Other Fluid Control Solutions

    Pneumadyne provides a full line of pneumatic valves and accessories including bleeder valves, flow control valves and more. Request a quote today or contact us to discuss your valve system requirements.
