Flow Control Valves

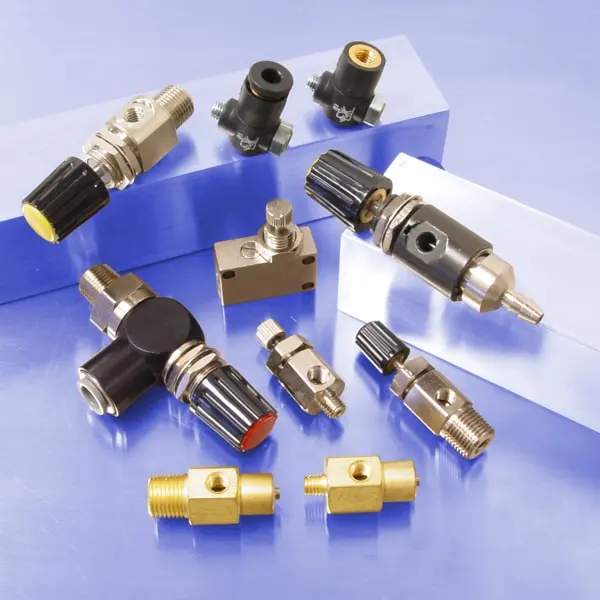

Click image to enlarge

Flow Control Valves are used to reduce the rate of flow in a section of a pneumatic circuit, resulting in a slower actuator speed. Unlike a Needle Valve, a Flow Control Valve regulates air flow in only one direction, allowing free flow in the opposite direction.

Selecting the Right Flow Control Valve

Flow rate requirements are extremely important when selecting a pneumatic Flow Control Valve for your application. The speed of the related actuator is dependent upon how quickly the actuator can be filled with air at the input and exhausted at the output.

Pneumadyne offers air Flow Control Valves in a range of styles, configurations, and port sizes. If you’re not sure which model is right for your specific application, please don’t hesitate to contact us. Our knowledgeable team will review the needs of your pneumatic system and help you select the Flow Control Valve that best meets your requirements.

Narrow Your Results By

Pneumadyne Air Flow Control Valves

Pneumadyne’s inline Flow Control Valves feature finely threaded stems that allow for gradual adjustment of the controlled flow passing through the valve. The pneumatic system’s air flow enters via the input port, travels through an orifice sized by the tapered stem, and out via the output port. Our pneumatic flow control valves include a bypass check which allows rapid free flow from the output through the input port.

We offer two types of air flow control valves. Their selection and placement within a pneumatic circuit will greatly affect the function of an actuator.

  • A meter-in flow control valve (also known as a reverse flow control valve) restricts the flow to an actuator.
  • A meter-out flow control valve regulates the exhaust flow from an actuator. These are the most commonly used air flow control valves.

Request a quote on the Pneumadyne Flow Control Valve you need, or contact us to learn more.

Pneumatic Components & Systems Manufacturing

Pneumadyne manufactures a standard offering of miniature pneumatic valves. We can also assist you with design and engineering of custom pneumatic components or full pneumatic control systems.

Request a quote on air Flow Control Valves or other components for your pneumatic system, or contact Pneumadyne to learn more.
