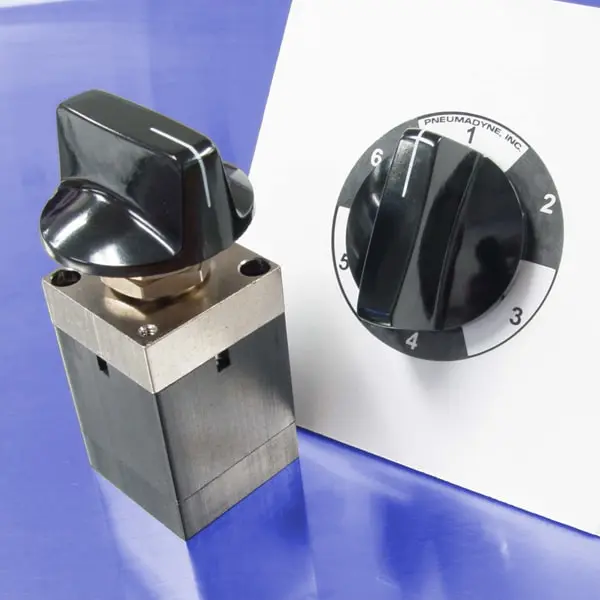

6-Position Selector Valves

Click image to enlarge

Selector Valves allow the actuation of up to six individual circuits from a common input port. Two styles of valves, Standard and Shut-off, are available to accommodate application requirements.

The Standard Selector Valve directs flow through each output port as the knob is turned. The Shut-off Selector Valve requires the knob to be pushed-in and turned, blocking flow to the output ports until a position is selected. These 3-way valves exhaust to atmosphere upon selection of a new output port.

A spring-loaded "wear compensating seat" retains a tight fit ensuring that the valve will not leak with wear.

  • Common input port
  • 10-32 (F) ports
  • Black anodized for corrosion resistance
  • Two styles of actuation
  • Panel mount
  • Detented knob

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 6.7 scfm at 125 psi

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
