Push Button (Stainless Steel 2-Way Valves)

Click image to enlarge

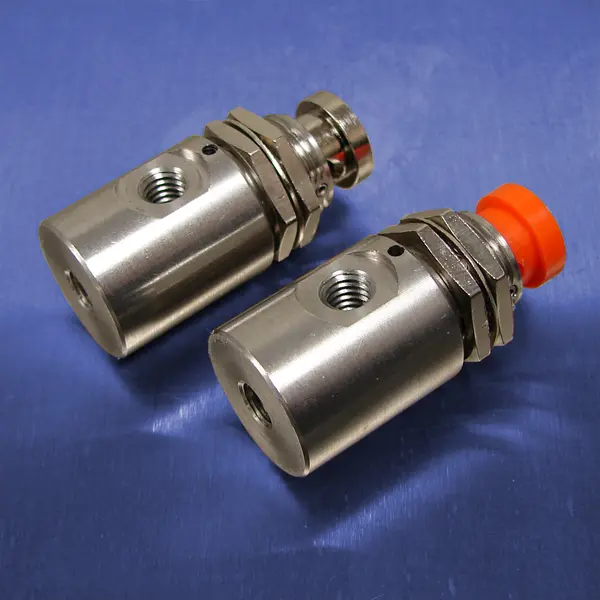

Pneumadyne's 2-way normally closed Stainless Steel valves are ideal for use as a pilot actuating device and basic on/off functions. These compact valves feature 10-32 (F) ports and are suitable for use in vacuum applications to 26 Hg.

  • 303 Stainless Steel valve body
  • Durable nylon and metal push button actuators
  • Single stem design
  • Suitable for vacuum to 26" Hg
  • Compact size for limited space applications.
  • Nuts and lockwasher included

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: 15.5 scfm at 125 psi.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
