Push Button Control Valves

Click image to enlarge

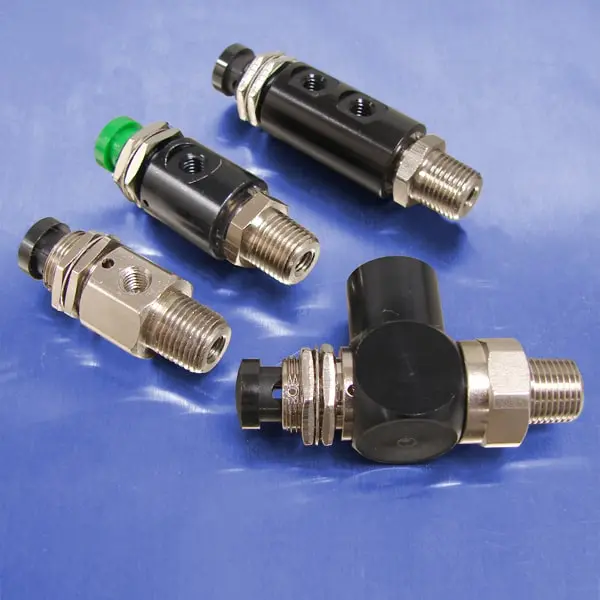

To ensure that flow and plumbing requirements are met, Pneumadyne manufactures four styles of 3-way valves with 1/8 NPT input ports.  To accommodate application requirements, both poppet and spool valves are offered.

The "0" Series valve, part number A0-30-1, features a swivel input port for valve alignment purposes. The non-threaded exhaust port allows pressure to be relieved to atmosphere.

Our "3" Series valve, part number A3-30-1, also features a swivel input port as well as a 10-32 (F) exhaust port to capture and remove exhaust flow from your application.

Pneumadyne's "11" Series (part numbers begin with A11) features a swivel output port to accommodate alignment requirements. Push-to-connect ports also ease tubing connection and disconnection.

The "300" Series valves, part numbers C030605 & C030625, are ideal for direct mounting in a manifold or other machine member.  These spool-style valves can be used in vacuum applications to 26" Hg.

For more information on the advantages of spool valves, read our Tech Tip:  Poppet vs. Spool Valves, Why Valve Type Matters.

  • Black anodized and electroless nickel plated for corrosion resistance
  • Miniature size for limited space applications
  • Swivel ports accommodate aligment requirements
  • Numerous porting configurations
  • Nuts and lockwasher provided for panel mounting

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 12.1 to 22 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
