Push Button Control Valve

Click image to enlarge

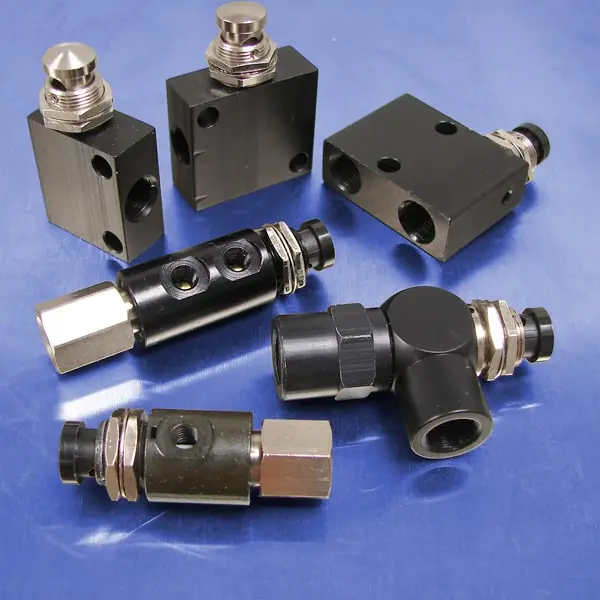

Pneumadyne manufactures seven configurations of 3-way valves with 1/8 NPT (F) input ports to accommodate plumbing requirements in a variety of applications.  Both poppet and spool valves are offered to fit your pneumatic circuit.

Pneumadyne's "0" & "3" Series valves, part numbers A0-30-4 & A3-30-4, feature swivel input ports for critical valve alignment. The "3" Series also has a 10-32 (F) exhaust port for the capture and removal of exhaust flow.

"11" Series valves (part numbers start with A11) feature a swivel output port as well as push-in connections to ease tubing installation.

Four styles of "400" Series valves (part numbers start with C04) are offered for plumbing convenience. The fully ported valves feature a 1/8 NPT (F) exhaust port for the capture and removal of exhaust flow in liquid, cleanroom or lubricated air applications.  All four configurations of "400" Series valves are spool-style valves which accommodate vacuum applications to 26" Hg.

For more information on the advantages of spool valves, read our Tech Tip:  Poppet vs. Spool Valves, Why Valve Type Matters.

  • Black anodized for corrosion and wear resistance
  • High flow
  • Several porting configurations to fit plumbing requirements
  • Swivel ports accommodate critical valve alignment
  • Plumbing and mounting versatility
  • Lockwasher and nuts provided

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 15.4 to 33 scfm depending upon valve selected. Download Performance Data for complete specifications.
