Push Button (2-Way Cartridge Valves)

Click image to enlarge

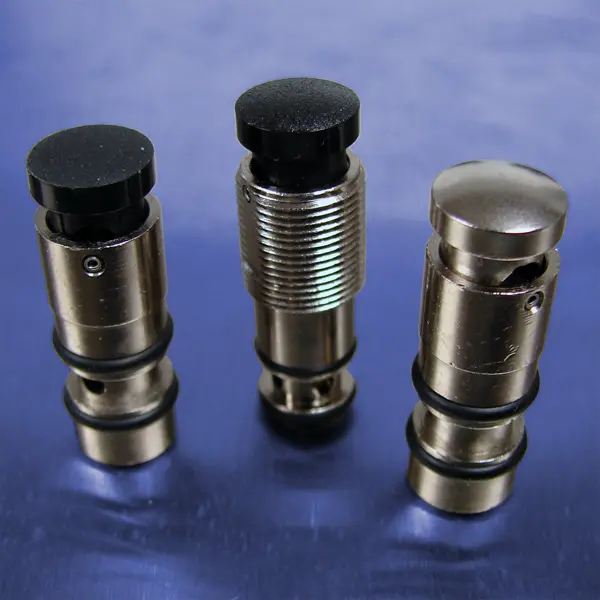

Cartridge valves are ideal for use in applications where space is limited. Upon insertion in the valve cavity, the Cartridge Valve is connected to the air passages machined into a manifold or valve block, eliminating the need for external plumbing. The result is a compact valve package that saves space and provides fewer potential leak-points in the application.

To ensure the flow requirements are met, Pneumadyne manufactures two styles of Cartridge valves. Both styles are suitable for vacuum applciatons to 26" Hg and feature flow rates of 10 scfm adn 33 scfm at 125 psi.

  • Electroless nickel plated for corrosion resistance
  • Suitable for vacuum applcations to 26" Hg
  • Durable nylon and metal actuators
  • Cavity drawings available
  • Single stem design
  • Compact size

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 20 to 33 scfm at 125 psi depending upon valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
