Push Button (1/8 NPT Input, 2-Way Valves, Normally Closed)

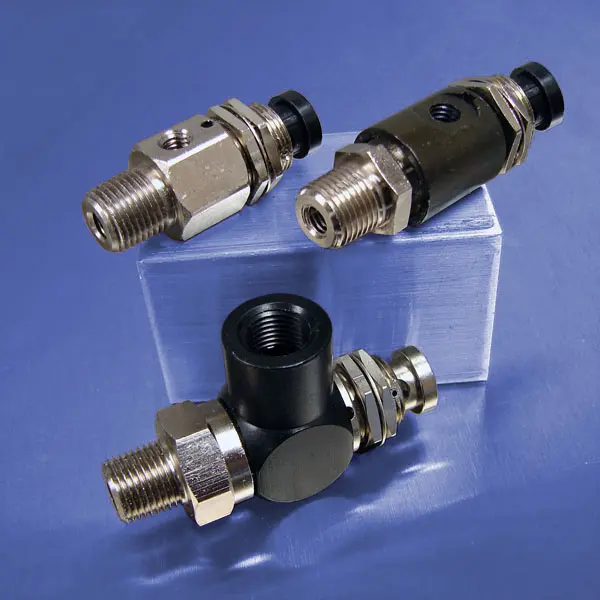

Click image to enlarge

Pneumadyne manufactures several styles of 2-way valves with 1/8 NPT Input ports to fit your application’s plumbing requirements.  The “0” Series valve, part number A0-20-1, features a swivel 1/8 NPT Input port to accommodate critical installation alignment and a 10-32 (F) output port.  “11” Series valves (part numbers begin with A11) feature a swivel output port as well as push-in connections for plumbing convenience.  The “300” Series valves with 1/8 NPT Input, part numbers C030705 & C030725, are ideal for direct mounting in a manifold or other machine member.

Metal and nylon toggles are offered to fit actuation requirements. Nylon toggles are available in seven colors with black as standard. Contact the factory to order colored actuators.

  • Black anodized or electroless nickel plated for corrosion resistance
  • Swivel ports accommodate valve alignment requirements
  • Push-in ports ease tubing connection
  • Compact size
  • Nuts (2) and lockwasher provided

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 17.3 to 22.1 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
