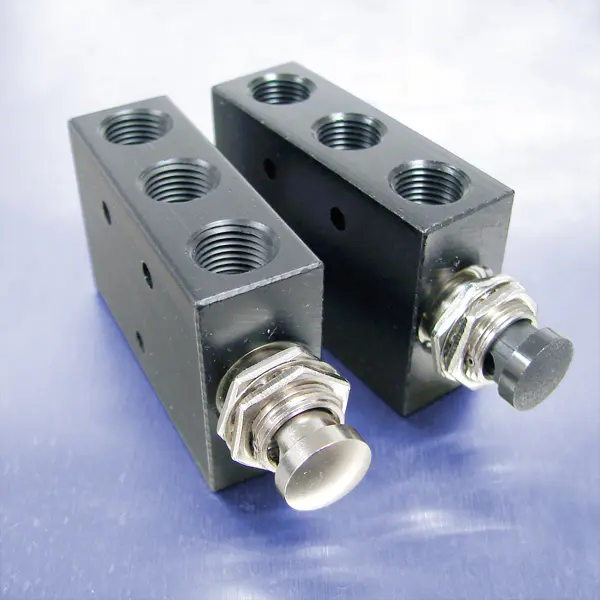

Push Button (1/8 NPT (F), 4-Way Valves)

Click image to enlarge

Pneumadyne manufactures two styles of 4-way control valves with 1/8 NPT (F) ports to fit your application and plumbing requirements.

Our "4" Series valve, part number A4C-1/8-SR, is a 3-Port 2-Position (3/2) valve; non-threaded exhaust ports relieve system pressure to atmosphere.

The "45" Series valves, part numbers AP45-1/8-SR & AM45-1/8-SR, are 5-Port 2-Position (5/2) valves and feature 1/8 NPT (F) exhaust ports for the capture and removal of exhaust flow

  • Black anodized for corrosion and wear resistance
  • Panel or surface mount
  • Durable nylon push button actuator
  • 4-Way 2-Position function
  • Nuts and lockwasher provided

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 10.9 to 27.2 scfm at 125 psi. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
