Push Button (1/4 Push-in Input, 2-Way Valves, Normally Closed)

Click image to enlarge

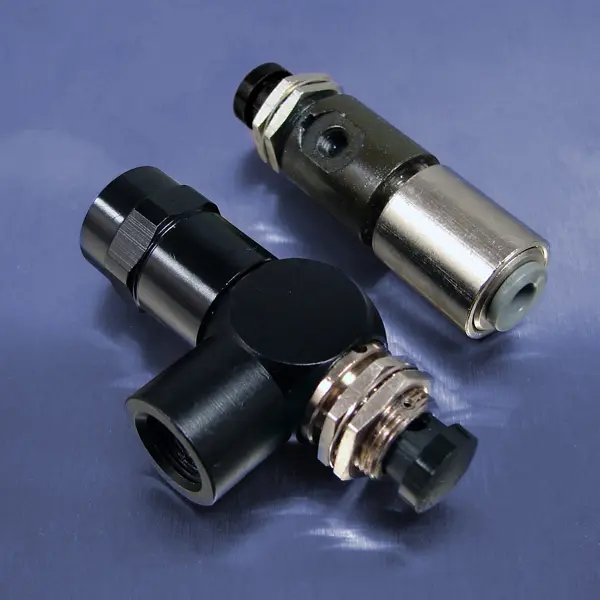

Pneumadyne manufactures two styles of 2-way valves with push-to-connect ports to accommodate application requirements.

Our highly reliable “0” Series valve, part number A0-20-6, features a swivel input port for critical alignment purposes.

The “11” Series valves (part numbers start with A11) feature a swivel output port. Push-in connections are also offered on the output port for fast tubing installation.

Durable nylon push buttons are retained by a specially designed stainless steel roll pin which extends service life. Several colors are available, black is standard. Contact Pneumadyne to order colored buttons.

Features
  • Swivel ports accommodate valve alignment requirements
  • Anodized valve bodies offer corrosion and wear resistance
  • Push-to-connecto ports speed tubing installation
  • Internal poppet design contributes to long product life
  • Nuts and lockwasher provided

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 17.3 to 22.1 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
