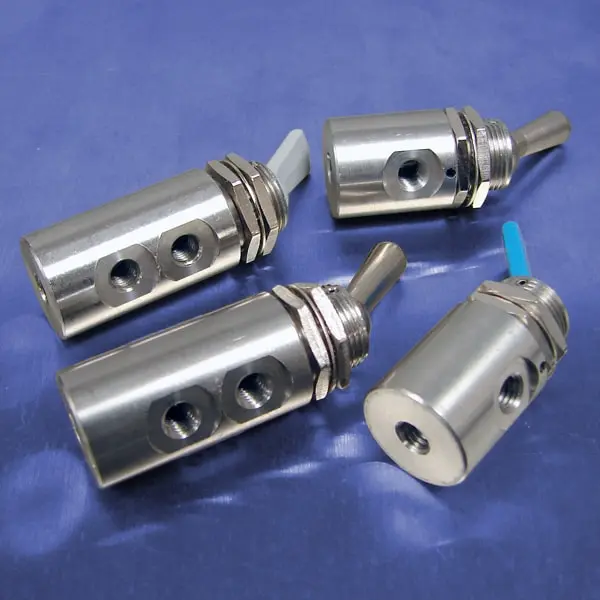

Momentary Toggle (Stainless Steel 3-Way Valves)

Pneumadyne's "300" Series stainless steel 3-way valves are available in two styles to fit application requirements. The fully ported valve features a 10-32 (F) exhaust port for the capture and removal of exhaust flow from liquid or cleanroom applications. Both styles are suitable for use with vacuum to 26" Hg.

Features
  • Fully ported design for plumbing versatility
  • 303 Stainless Steel valve body
  • Durable nylon or metal momentary toggles
  • Compact size is ideal for limited space applications.
  • Single stem design
  • Lockwasher and nuts provided

Products

Narrow Your Results By:

Return to Top

Product Files


Return to Top

Performance Data

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 15.5 to 20 scfm at 125 psi depending upon the valve selected.

Return to Top

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
