Momentary Toggle Control Valve

Click image to enlarge

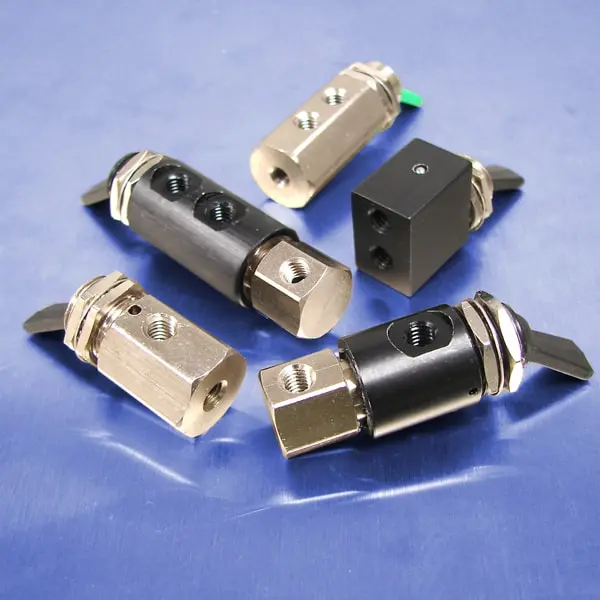

Several variations of 3-way normally closed valves with 10-32 (F) input are manufactured by Pneumadyne to accommodate your application requirements. All styles feature a 10-32 (F) output port. Fully ported valves are also available for plumbing convenience.

Our "0" Series & "3" Series valves (part numbers start with F0 & F3) feature swivel input ports in the elbow and tee to fit application plumbing requirements. The "3" Series is a fully ported valve with a 10-32 (F) exhaust port for the capture and removal of exhaust flow.

Pneumadyne's "300" Series is available in three configurations: Standard, Fully Ported and Rear Ported. The Standard valves (C030103 & C030123) feature 10-32 (F) input and output ports and a non-threaded exhaust. The Fully Ported valves feature a 10-32 (F) exhaust port while the Rear Ported valves provide side-by-side porting for use in space constrained applications.

Features
  • Black anodized and electroless nickel plated for corrosion resistance
  • Variety of configurations to fit application requirements
  • Miniature size
  • Single stem or poppet design
  • Fully ported valves offer plumbing versatility
  • Lockwasher and nuts provided for panel mounting

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 15.4 to 20 scfm at 125 psi depending upon the valve selected. Download Performance Data for complete valve specifications.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
