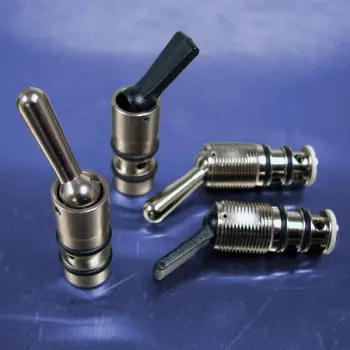

Momentary Toggle (3-Way Cartridge Valves)

Click image to enlarge

Pneumadyne Cartridge Valves easily connect air passages machined into manifolds or valve blocks resulting in a compact valve package that saves space, eliminates external plumbing and provides fewer potential leak-points in an application.

To ensure that flow requirements are met, Pneumadyne manufactures two styles of Cartridge Valves; both are suitable for vacuum applications and offer flow rates of 15.5 scfm and 33 scfm at 125 psi.

  • Electroless nickel plated for corrosion resistance
  • Single stem design
  • Compact size
  • Suitable for vacuum applications to 26" Hg
  • Durable nylon and metal toggles
  • Cavity drawings available

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 20 to 33 scfm at 125 psi depending upon valve selected. Download Performance Data for specific information.
