Momentary Toggle (1/4 Push-in Input, 2-Way Valves, Normally Clos

Click image to enlarge

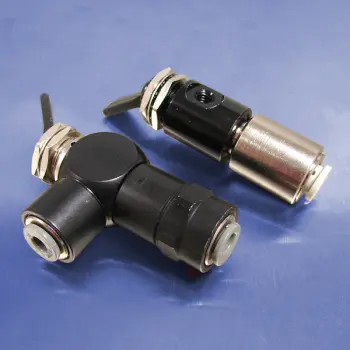

Push-to-connect ports offer faster tubing installation and plumbing convenience. Pneumadyne manufactures two styles of 2-way valves with push-to-connect ports to fit your application requirements.

The highly reliable “0” Series valve, part number F0-20-6, features a swivel input port and 10-32 (F) output port.

Our “11” Series valves (part numbers starting with F11) feature a swivel output port for alignment purposes. Push-in connections are also available in the output port to speed tubing installation.

Durable nylon toggles are retained by a specially design roll pin which extends service life. Black momentary toggles are standard. Several colors are available, contact factory for ordering information.

Features
  • Swivel ports for alignment purposes
  • Anodized valve bodies offer corrosion and wear resistance
  • Push-to-connecto ports speed tubing installation
  • Internal poppet contributes to long product life
  • Nuts and lockwasher provided

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 17.3 to 22.1 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
