Double Push Button (1/8 NPT (F), 4-Way Valves)

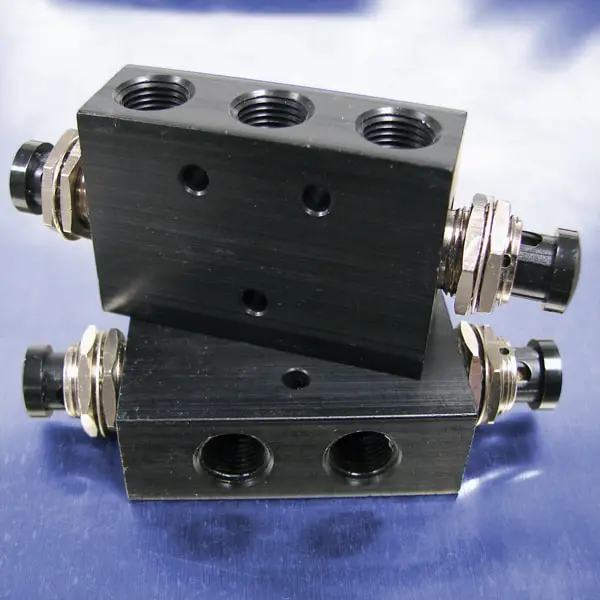

4-way valves with double push button actuators are most commonly used in conjuction with air pilot operators allowing two different pneumatic signals to actuate the valve and direct air flow. Pneumadyne manufactures two styles of 4-way control valves to accommodate application requirements.

The "4" Series valve, part number A4C-1/8-DP, is a 3-Port 2-Position (3/2) valve; non-threaded exhaust ports allow air to exhaust to atmosphere.

Our "45" Series, part number AP45-1/8-DP, is a 5-Port 2-Position (5/2) valve and features 1/8 NPT (F) input, output and exhaust ports.

Features
  • Black anodized for corrosion and wear resistance
  • Durable nylon push button actuators
  • Panel or surface mount
  • 4-Way 2-Position function
  • Nuts and lockwasher included

Products


Performance Data

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 10.9 to 27.2 scfm at 125 psi. Download Performance Data for specific information.
