Detented Toggle Control Valve

Detented Toggle Control Valve
Detented Toggle Control Valve

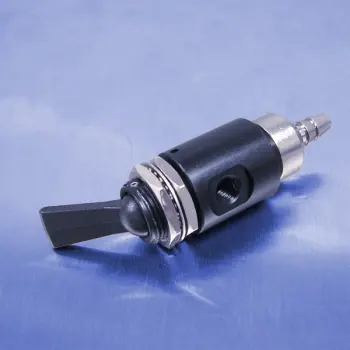

Pneumadyne manufactures two styles of 3-way normally closed valves with .170 tube id barbs in the input port.

The highly reliable "0" Series valve, part number H0-30-5, features a swivel input port to accommodate the natural twist of polyurethane tubing.

Our "3" Series valve, part number H3-30-5, also has a swivel input port as well as a 10-32 (F) exhaust port for the capture and removal of exhaust flow.

  • Miniature size for limited space applications
  • Durable nylon detented toggles
  • Poppet design contributors to long product life
  • Anodized for corrosion and wear resistance
  • Nuts and lockwasher included for panel mounting

    Performance Data

    • Operating Pressure: 0 to 125 psi
    • Flow Rate: Ranges from 15.4 to 17.3 scfm at 125 psi depending upon valve selected. Download Performance Data for specific information.

    CAD Library

    Click here to search for and download a CAD model of this Pneumadyne component on
