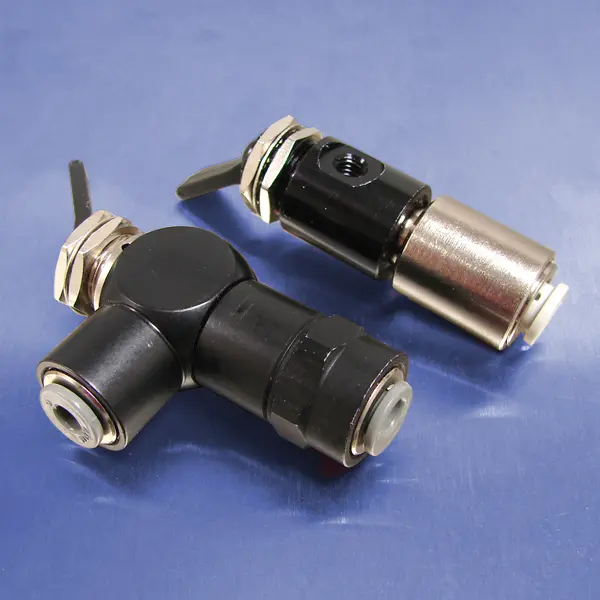

Detented Toggle Control Valve

Click image to enlarge

3-way valves with push-in ports speed valve and tubing installation in your application. Pneumadyne manufactures three configurations of valves to accommodate plumbing requirements.

Our highly reliable "0" Series valves, part number H0-30-6, feature a swivel input port for alignment purposes.

In addition to a swivel input port, our "3" Series valve (part number H3-30-6) has a 10-32 (F) exhaust port for the capture and removal of exhaust flow.

Pneumadyne's "11" Series valves (part numbers start with H11) feature a swivel output port for plumbing convenience. Push-in ports are also offered to ease tubing connection.

  • Black anodized for corrosion and wear resistance
  • Swivel ports accommodate alignment requirements
  • Plumbing versatility
  • Poppet design contributes to long product life
  • Durable nylon toggles
  • Nuts and lockwasher included

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 15.4 to 22.1 scfm at 125 psi depending upon valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on
