Detented Toggle Control Valve

Detented Toggle Control Valve
Detented Toggle Control Valve

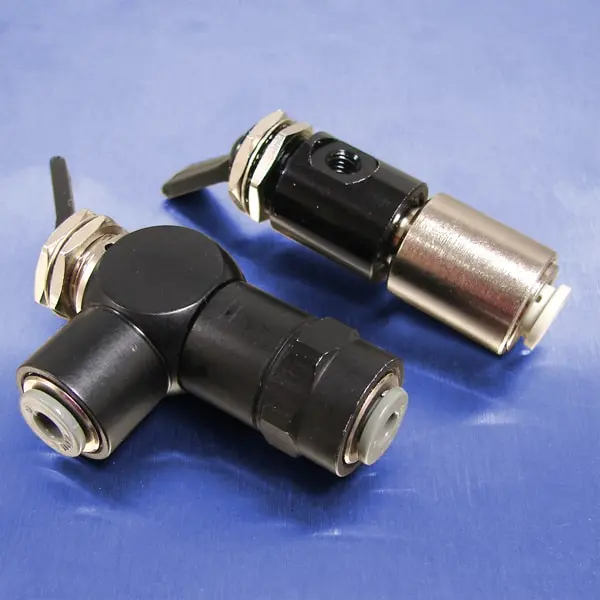

Three styles of 3-way valves are offered with 5/32 push-in input ports to ease tubing and valve installation.



Pneumadyne's highly reliable "0" Series valve, part number H0-30-7, features a swivel input port to accommodate alignment requirements.



The "3" Series, part number H3-30-7, also features a swivel input port as well as a 10-32 (F) exhaust port for the capture and removal of exhaust flow.



Pneumadyne's "11" Series valves, part numbers start with H11, have a swivel output port for plumbing convenience. Push-in connections in the output port are also available to speed tubing installation.

Features
  • Anodized for corrosion & wear resistance
  • Compact size for limited space applications
  • Push-in ports speed tubing connection
  • Durable nylon toggles
  • Nuts and lockwasher provided

    Performance Data

    • Operating Pressure: 0 to 125 psi
    • Flow Rate: Ranges from 15.4 to 22.1 scfm at 125 psi depending upon valve selected. Download Performance Data for specific information.
