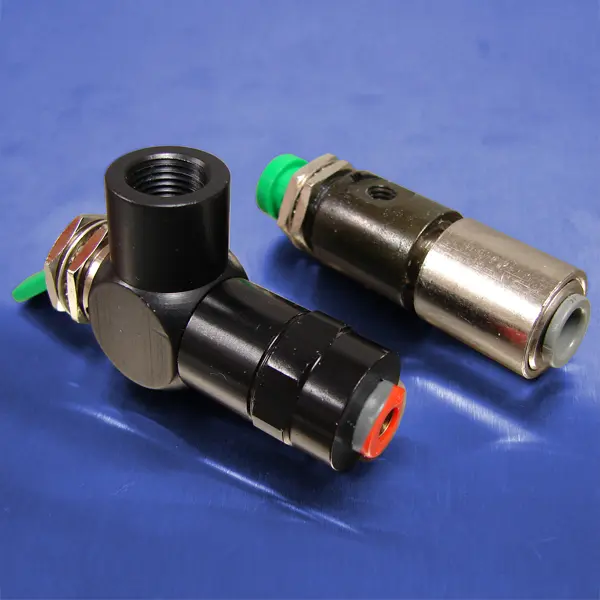

Detented Toggle (1/4 Push-in Input, 2-Way, Normally Closed Valve

For plumbing convenience, Pneumadyne manufactures two styles of valves with ¼” push-to-connect input ports. The “0” Series valve, part number H0-20-6, features a swivel input port and 10-32 (F) output port. Our “11” Series valves (part numbers starting with H11) feature a swivel output port for alignment purposes. Push-in connections are also offered on the output port to speed tubing installation and fit application requirements. Black nylon toggles are standard. Several colors are available, contact factory to order.

Features
  • Swivel input or output ports for critical alignment
  • Internal poppet design extends product life
  • Black anodized valve bodies for corrosion and wear resistance
  • Lockwasher and nuts provided
  • Push-in ports speed tubing installation

Performance Data

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 17.3 to 22.1 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
