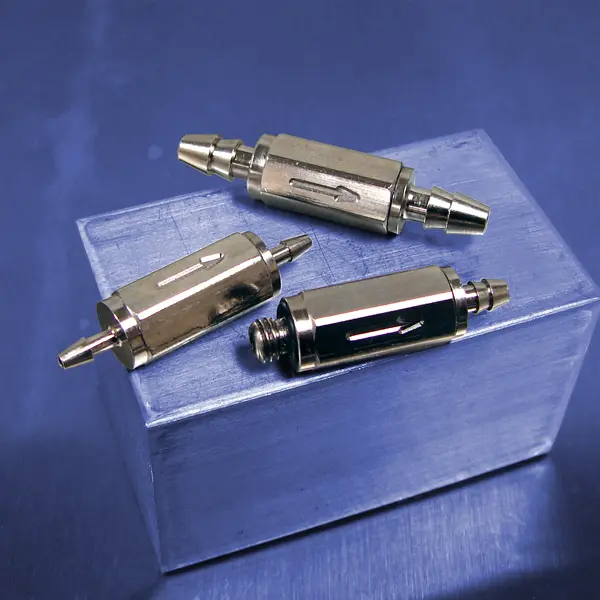

Barbed Input Port (Check Valves)

Click image to enlarge

Check Valves are used in pneumatic circuits which require free flow in one direction and no flow in the opposite direction. For installation and plumbing convenience, Pneumadyne offers a variety of porting options.

Features
  • Durable brass construction
  • Electroless nickel plated for corrosion resistance
  • Low cracking pressure
  • Multiple porting options
  • Compact size

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 2.5 to 9.5 scfm at 125 psi depending on valve selected.
