Ball (Stainless Steel 3-Way Valves)

Click image to enlarge

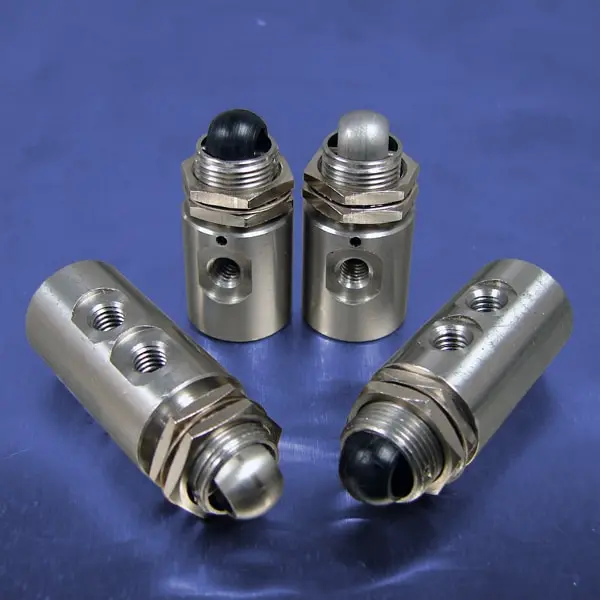

Pneumadyne's 3-way Stainless Steel valves are offered in two styles to accommodate plumbing and application requirements. The 10-32 (F) exhaust port in the fully ported valve body is ideal for the capture and removal of exhaust flow in liquid, cleanroom or lubricated air applications.

  • 303 Stainless Steel valve body
  • Nylon or stainless steel ball actuator
  • Miniature size is ideal for applications where space is limited
  • Single stem design
  • Fully ported design offers plumbing versatililty
  • Nuts and lockwasher included

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: Ranges from 15.5 to 20 scfm at 125 psi depending upon the valve selected.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on
