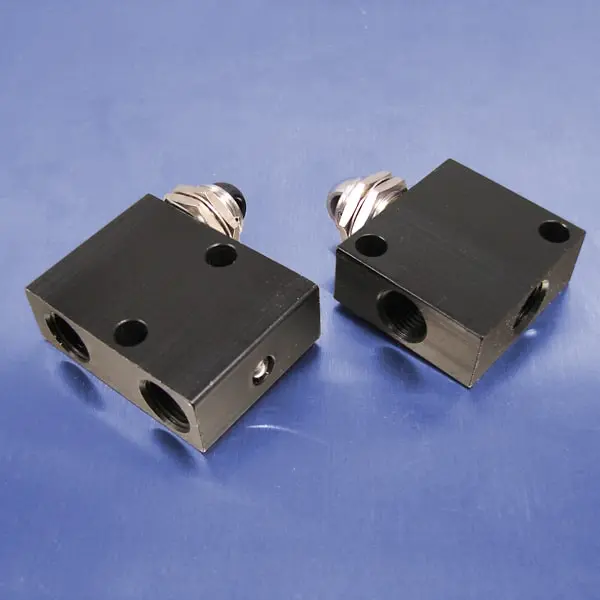

Ball Control Valve

Pneumadyne's "400" Series valves feature 1/8 NPT (F) input and output ports and are available in four configurations for plumbing convenience. Durable nylon and stainless steel ball actuators accommodate application requirements. Fully ported valves are ideal for the capture and removal of exhaust flow in liquid, cleanroom and lubricated air applications.

Features
  • Black anodized for corrosion and wear resistance
  • Four porting configurations
  • Single stem design
  • Plumbing and mounting versatility
  • Vacuum applications to 26" Hg
  • Nuts and lockwasher included

Performance Data

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: 33 scfm at 125 psi

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
