Ball (2-Way Cartridge Valves)

Click image to enlarge

Pneumadyne's "300" Series Cartridge Valves are ideal for use in manifold systems and custom applications where space is limited. Upon insertion in the valve cavity, the Cartridge Valve is connect to the air passages machined in the manifold or valve block, eliminating the need for external plumbing.

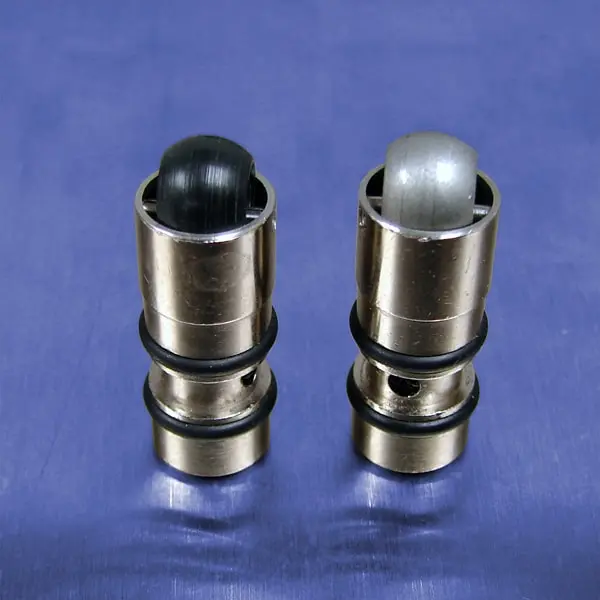

These 2-way Cartridge Valves are available with a nylon or stainless steel ball actuator to accommodate actuation requirements.

  • Suitable for use in vacuum applications to 26" Hg
  • Electroless nickel plated for corrosion resistance
  • Single stem design
  • Compact size
  • Durable nylon or stainless steel ball actuator
  • Cavity drawings available

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: 20 scfm at 125 psi

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on
