Ball (1/8 NPT Input, 2-Way Valves)

Click image to enlarge

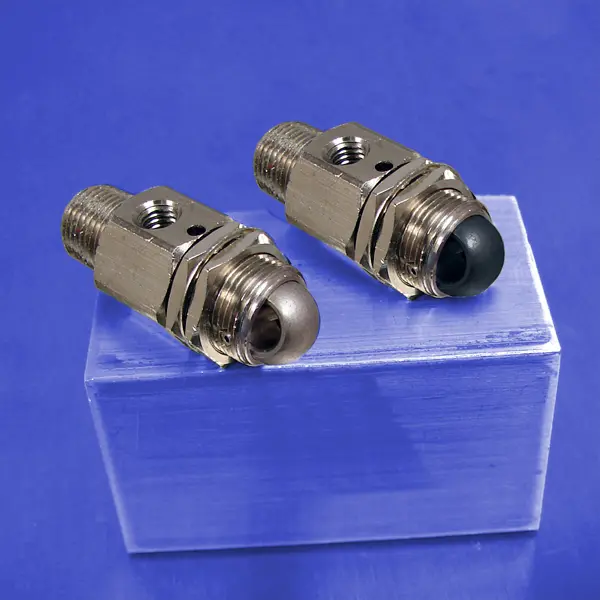

Pneumadyne's "300" Series valves are ideal for basic on/off functions or as a pilot actuating devices. Nylon and stainless steel ball actuators are available to fit circuit requirements.

Features
  • Electroless nickel plated for corrosion resistance
  • Miniature size for limited space applications
  • Single stem design
  • Vacuum applications to 26" Hg
  • Ideal for direct manifold or machine mount
  • Lockwasher and nuts provided

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: 17.8 scfm at 125 psi

Product FilesReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
