Air Pilot Control Valve

Click image to enlarge

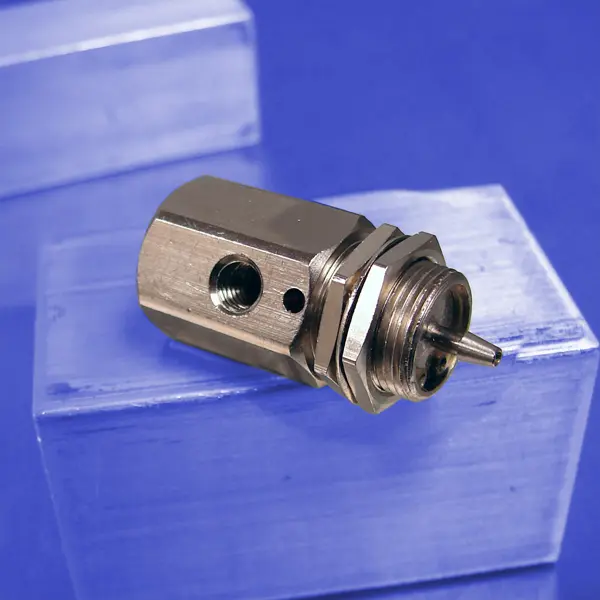

Pneumadyne's "300" Series valve features 10-32 (F) input and output ports as well as a barbed Air Pilot port for remote actuation.

  • 1/16 Tube Id barb air pilot port
  • Electroless nickel plated
  • Miniature size for limited space applications
  • Ideal for vacuum applications to 26" Hg
  • Nuts and lockwasher provided for panel mounting

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: 15.5 scfm @ 125 psi

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on
