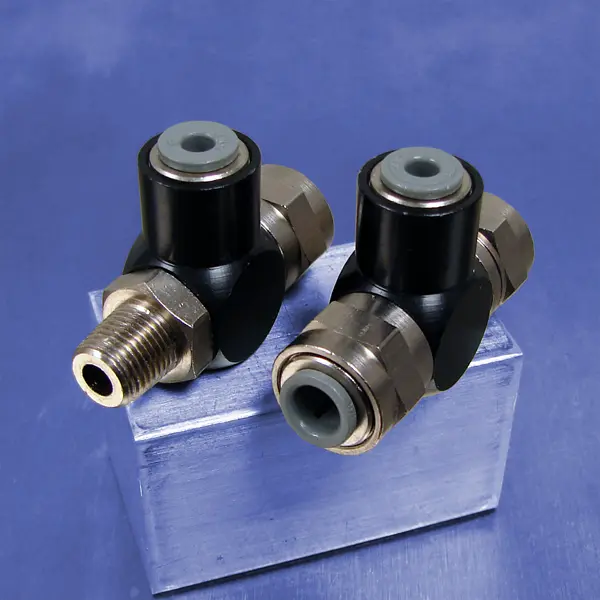

5/32" Push-in Output Port (Shuttle Valves)

Click image to enlarge

Shuttle Valves are commonly referred to as "OR" valves and are used to automatically select the higher of two input pressues allowing flow to the output port.

Pneumadyne offers a variety of porting options to fit plumbing requirements. Incorporating push-to-connect ports into our Shuttle Valves contributes to a higher flow rate and reduces intallation time by a minimum of 40%.

  • Low cracking pressure
  • Black anodized and electroless nickel plated for corrosion resistance
  • Long service life
  • Plumbing versatility
  • High flow rate

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 33 scfm at 125 psi
