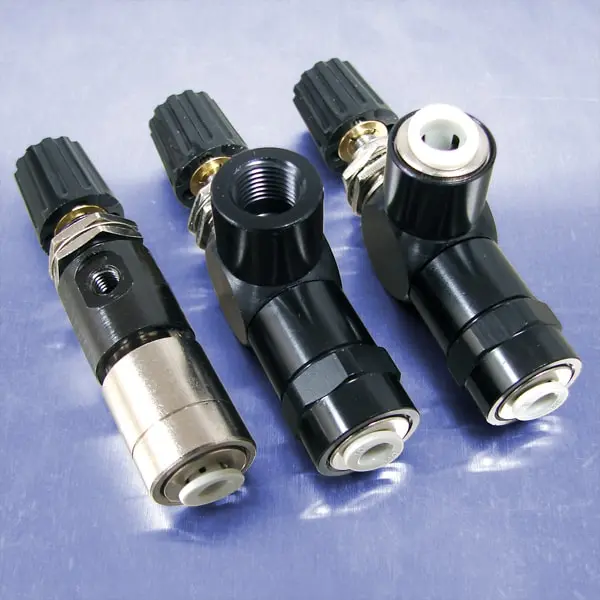

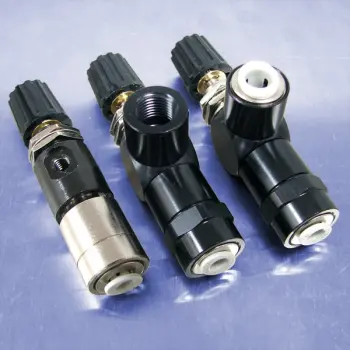

5/32" Push-in Input Port (Needle Valves)

Click image to enlarge

Pneumadyne Needle Valves are used in pneumatic circuits required controlled flow in both directions (bi-directional). A finely threaded stem allows for the gradual adjustment of controlled flow to match system requirements.

Pneumadyne manufactures a variety of configurations for plumbing convenience.

  • Black anodized for corrosion and wear resistance
  • Swivel ports accommodate alignment requirements
  • Instrument quality knob
  • Push-to-connect ports speed valve installation
  • Panel mountable
  • Compact size

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 9.4 to 27 scfm at 125 psi depending upon valve selected.

ProductsReturn to Top
