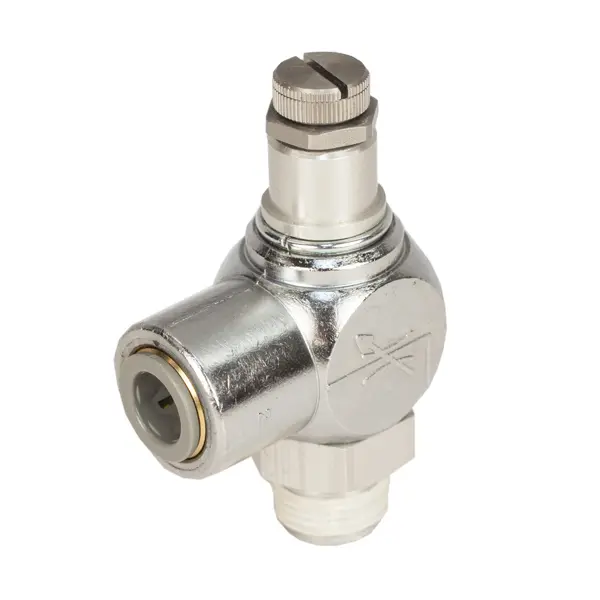

3/8 NPT Input Port (Needle Valves)

Click image to enlarge

Needle valves are ideal for controlling the extension and retraction speeds of a double acting cylinder.  Once installed, a single needle valve can control the volume of air entering the cylinder as well as the volume of air leaving the cylinder. These all metal valves feature a 3/8 NPT input and a 3/8" OD push-in output port for easy installation.  Choose between a screwdriver slot or a knurled knob for flow adjustment.

Features
  • Provides metered flow in both directions
  • Chrome plated, zinc die cast body
  • Recessed or knob style adjustment
  • Input Port: 3/8 NPT
  • Output Port: 3/8" OD
  • Thread sealant is standard on male threads
