3-Way 2-Position Valves

Click image to enlarge

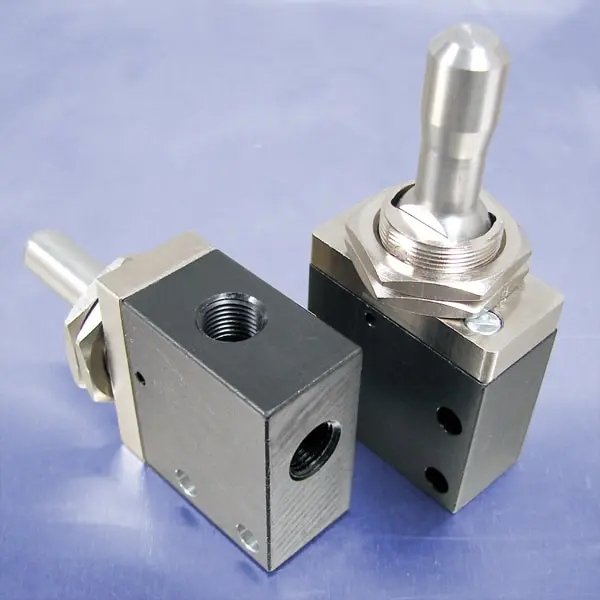

Pneumadyne's high flow 3-way 2-Position valves feature a solid aluminum body and stainless steel toggle and are ideal for use in rugged applications.

These 3-way valves feature 1/8 NPT (F) input and output ports and provide a flow rate of 41 scfm at 125 psi. A non-threaded exhaust port allows exhaust flow to be released to atmosphere. Both detented and momentary toggle actuation are offered to accommodate application requirements. Heavy duty toggles are also available for extreme environments.

  • Black anodized for corrosion and wear resistance
  • High flow rate
  • Detented & momentary actuation
  • Panel or surface mount
  • Heavy duty toggle available
  • Nuts (2) included

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 41 scfm at 125 psi

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
