2-Way 3-Position Valves

Click image to enlarge

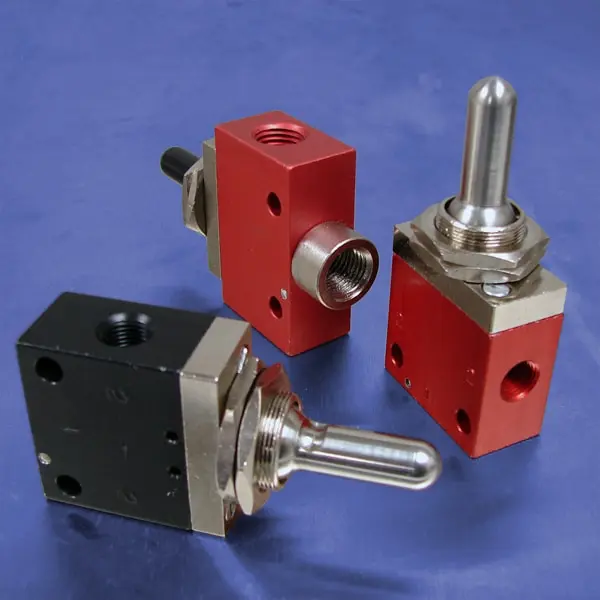

Pneumadyne's 2-way 3-Position Toggle Valves are ideal for your basic on/off function or as a Selector valve. A popular application for this valve is to quickly inflate or deflate an airbag by installing a 2-way between a compressor and an airbag. In applications that require a Dual Pressure Selector, simply plumb gases or pressure to each output port. Actuation of the toggle then allows the selected media to flow through the common input port.

  • Dual function product contains 2 valves in 1 body with a common input & common exhaust
  • 1/8 NPT (F) or 1/4 NPT (F) porting
  • Anodized for corrosion and wear resistance
  • High flow rate
  • Panel or surface mount
  • Locknuts included

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 or 150 psi depending upon valve selectedDownload Performance Data for specific information
  • Flow Rate: Ranges from 41 to 57 scfm at 125 psi depending upon valve selected.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
