1/8 NPT Input Port (Pressure Regulators, Relieving)

Click image to enlarge

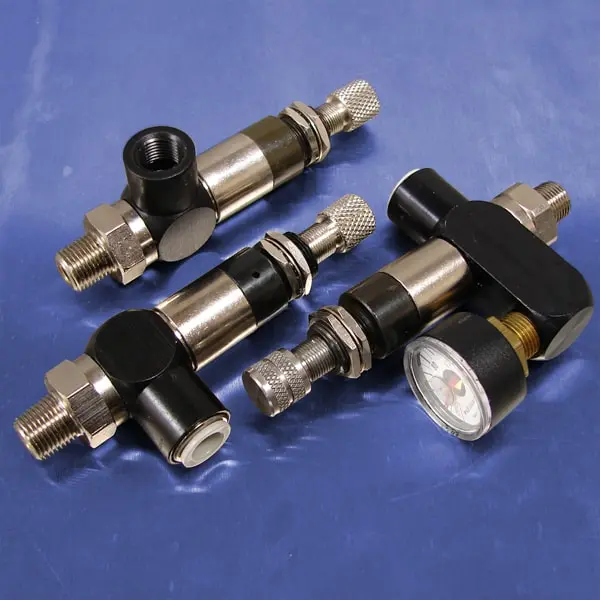

Pneumadyne manufactures a variety of Pressure Regulators for the purpose of maintaining a preset downstream pressure in your application.

The "0" Series Regulator, part numbers R0-RK-1 & R0-RP-1, features a swivel input port for alignment purposes.

Our "11' Series (part numbers start with R11) feature a swivel output port as well as push-in connections for plumbing convenience. An extended gauge port is also offered for on-site pressure readings.

  • Swivel ports for critical valve alignment
  • Black anodized and electroless nickel plated for corrosion resistance
  • Knurled or Acetal control knobs
  • Push-to-connect ports speed tubing installation
  • Extended gauge port provides on-site pressure indicator
  • Mounting versatility

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 30 to 125 psi
  • Flow Rate: 22 scfm at 125 psi
