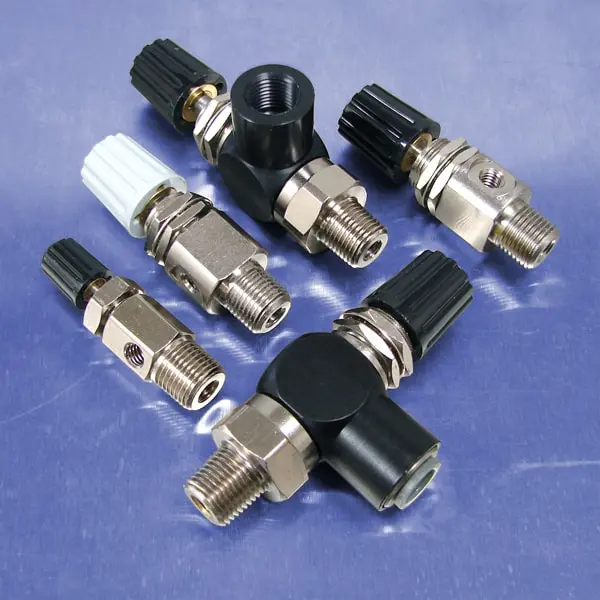

1/8 NPT Input Port (Needle Valves)

Click image to enlarge

Needle Valves are used in applications requiring controlled flow in both directions (bi-directional).



Pneumadyne manufactures a large variety of configurations and porting options to fit application and plumbing requirements. Our "0" & "11" Series valves (part numbers begin with PNV0 & PNV11) feature swivel ports to accommodate critical valve alignment. Push-to-connect ports also speed tubing and valve installation.

Features
  • Anodized for corrosion & wear resistance
  • Swivel ports for valve alignment
  • Panel mountable
  • Instrument quality knob
  • Nuts (2) and lockwasher provided

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 6.2 to 27 scfm at 125 psi depending upon valve selected.

ProductsReturn to Top



Compliance
