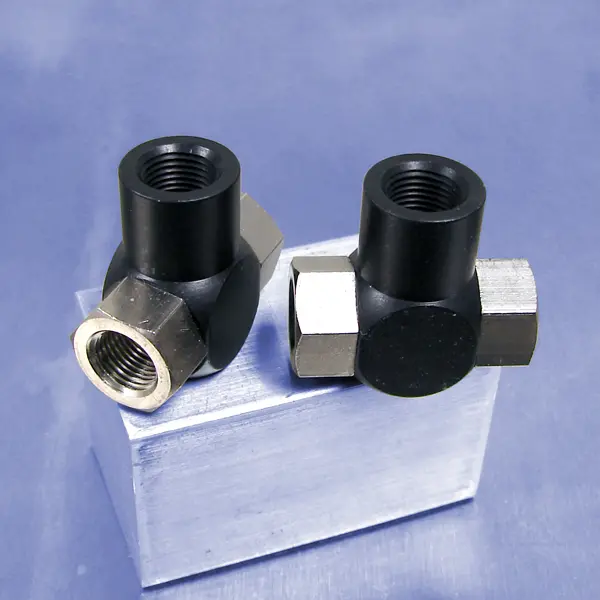

1/8 NPT (F) Output Port (Shuttle Valves)

Click image to enlarge

Shuttle valves are used in pneumatic circuits to automatically select the higher of two input pressures, allowing media to flow from one input port to the output port. These valves are also called "OR" valves.

For plumbing convenience, Pneumadyne manufactures a variety of porting options. Our "11" Series Shuttle Valves feature 1/8 NPT (F) threads and push-to-connect ports which contribute to higher flow rates. Push-to-connect ports also reduce installation time by a minimum of 40% and eliminate the need for additional fittings.

Features
  • Low cracking pressure
  • Black anodized and electroless nickel plated for corrosion resistance
  • Space saving
  • Long service life
  • Plumbing versatility

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 33 scfm at 125 psi

ProductsReturn to Top



Compliance
