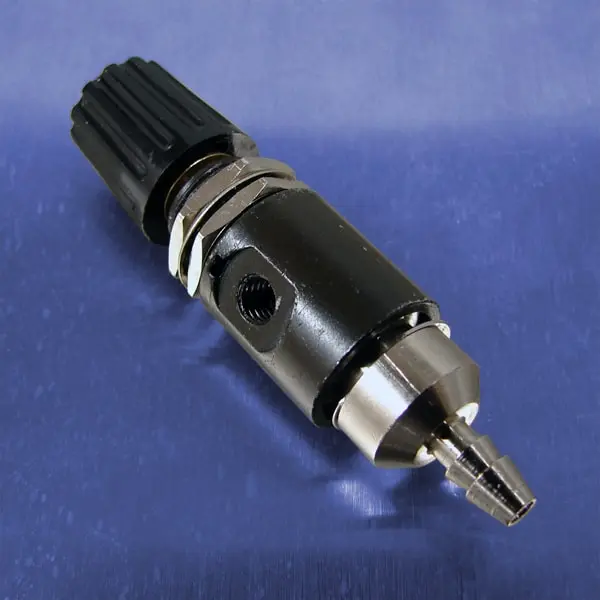

.170 Tube Id Barb Input Port (Needle Valves)

Click image to enlarge

Pneumadyne's "0" Series Needle Valve is ideal for controlling bi-directional flow in a pneumatic circuit. The finely threaded stem gradually adjusts controlled flow to match system requirements. The .170 tube Id barbed input port is recommended for use with polyurethane tubing.

Features
  • Black anodized for corrosion and wear resistance
  • Instrument quality knob
  • Swivel input port for valve aligment
  • 10-32 (F) output port
  • Panel mountable
  • Nuts (2) and lockwasher provided

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 9.4 scfm at 125 psi.
