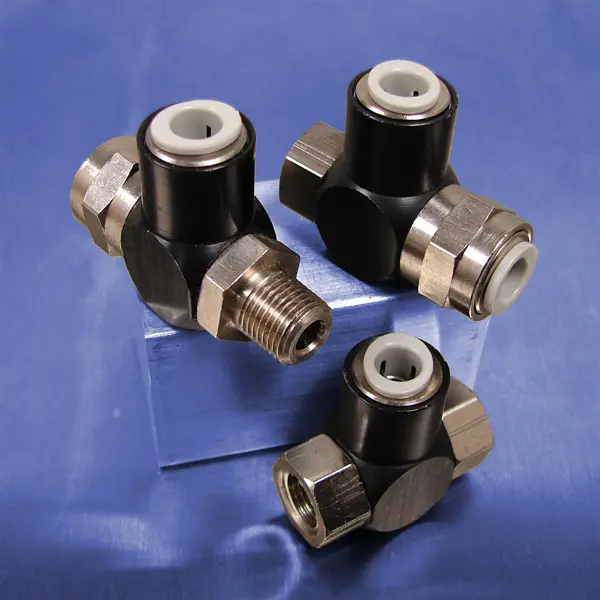

1/4" Push-in Output Port (Shuttle Valves)

Pneumadyne Shuttle Valves automatically select the higher of two input pressures allowing flow to the output port. These valves are also commonly referred to as "OR" valves in pneumatic circuitry.

A variety of porting options are offered for plumbing convenience. The push-to-connect ports feature on our "11" Series Shuttle Valves contribute to a higher flow rate and reduce installation time by a minimum of 40%.

Features
  • Black anodized and electroless nickel plated for corrosion resistance
  • Low cracking pressure
  • High flow rate
  • Plumbing versatility
  • Space saving
  • Long service life

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance Data

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 33 scfm at 125 psi
