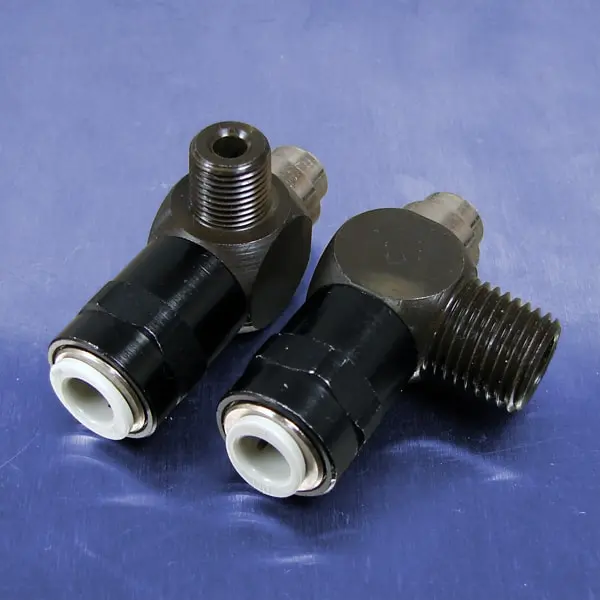

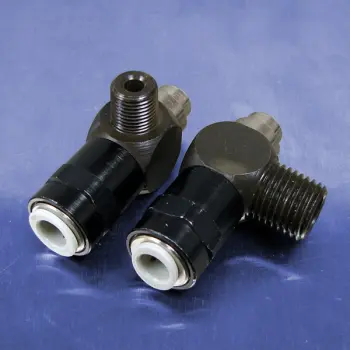

1/4" Push-in Input Port (Quick Exhaust Valves)

Click image to enlarge

Pneumadyne's "11" Series Quick Exhaust Valves allow rapid cylinder return without permitting air to travel back through the system. A wide variety of configurations are available to accommodate application requirements. A swivel cylinder port is also incorporated for plumbing convenience.

For added versatility, exhaust port options include: 1/8 NPT (F) for use with sintered bronze or industrial mufflers, 1/4-28 UNF (F) for use with a speed control needle and 1/4 push-to-connect for fast tubing installation.

  • Black anodized & electroless nickel plated for corrosion resistance
  • Swivel cylinder port for alignment purposes
  • Relieves 100 in3 in 2 seconds
  • Multiple porting options
  • Right angle configuration
  • Male pipe thread for direct cylinder mount

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 20.2 scfm at 125 psi
