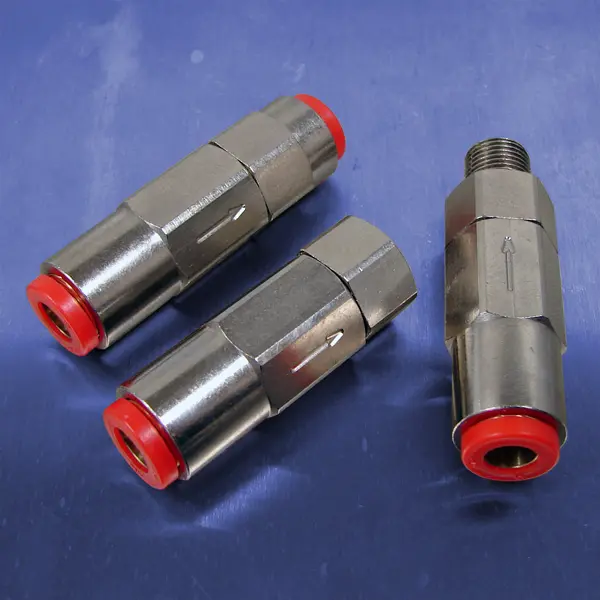

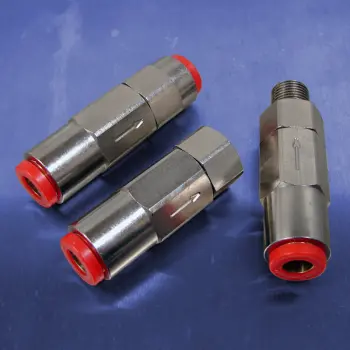

1/4" Push-in Input Port (Check Valves)

Pneumadyne Check Valves are used in pneumatic circuits to allow free flow in one direction and no flow in the opposite direction. Multiple porting options are available for plumbing convenience and push-to-connect ports speed valve installation.



Part number C050605 is recommended for use in our Air Devil™ Pneumatic Tattoo Control Systems.

Features
  • Low cracking pressure
  • High flow rate
  • Durable brass construction
  • Electroless nickel plated for corrosion resistance

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance Data

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 19.5 to 24.5 scfm at 125 psi depending upon valve selected.
