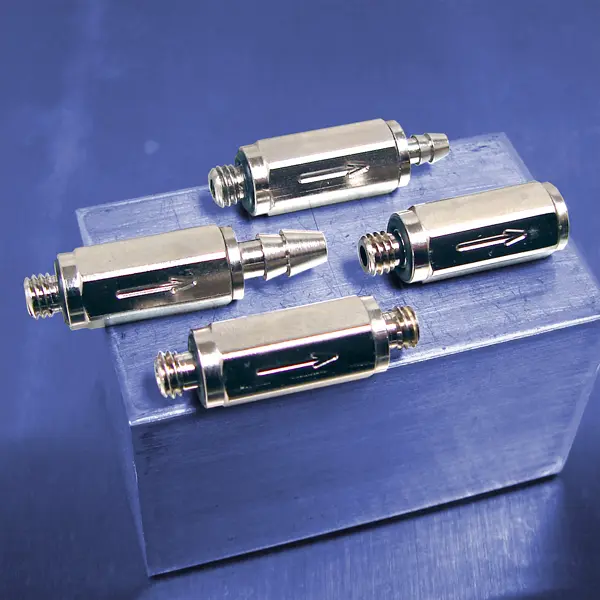

10-32 Input Port (Check Valves)

Click image to enlarge

Check Valves are simple devices that allow free flow in one direction and no flow in the opposite direction. Pneumadyne offers a variety of porting options for plumbing convenience.

  • Low cracking pressure
  • Durable brass construction
  • Electroless nickel plated for corrosion resistance
  • Compact size
  • Multiple porting options

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 2.5 to 9.5 scfm at 125 psi depending on valve selected.

ProductsReturn to Top
