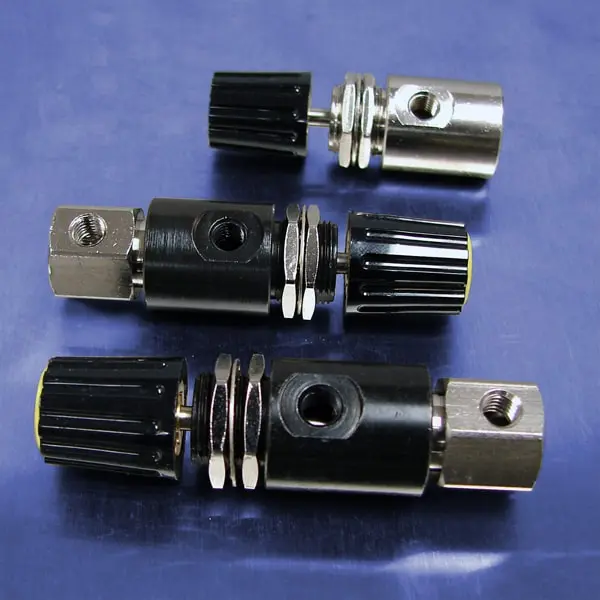

10-32 (F) Input Port (Needle Valves)

Click image to enlarge

Needle Valves are used in pneumatic circuits which require controlled flow in both directions (bi-directional). Pneumadyne manufactures a variety of Needle Valves to accommodate flow and plumbing requirements.

  • Black anodized for corrosion and wear resistance
  • Panel mountable
  • 10-32 (F) output port
  • Swivel input port accommodates alignment requirements
  • Instrument quality knob
  • Lockwasher and nuts provided

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 9.4 scfm at 125 psi.

ProductsReturn to Top
