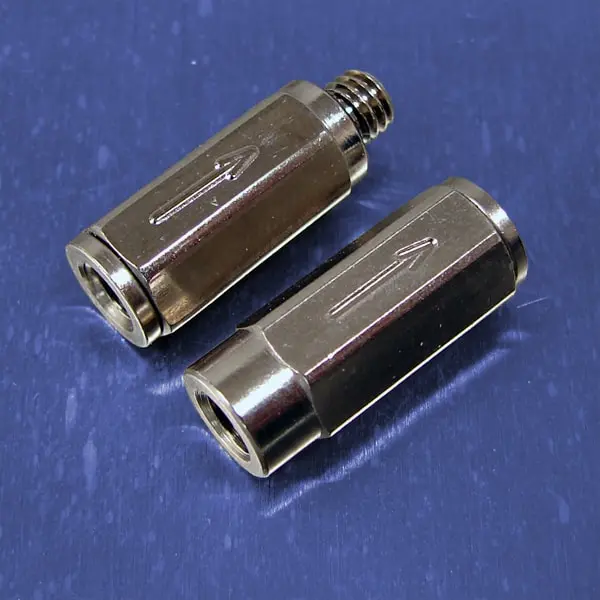

10-32 (F) Input Port (Check Valves)

Pneumadyne Check Valves allow free flow in one direction and no flow in the opposite direction. Several porting options are available to accommodate plumbing requirements. Part number C050401-SS features a 303 Stainless Steel body.

Features
  • Durable brass or stainless steel construction
  • Low cracking pressure
  • Compact inline or port mounting styles
  • Precision machined
  • Electroless nickel plated for corrosion resistance (brass only)

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance Data

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: 9.5 scfm at 125 psi.
