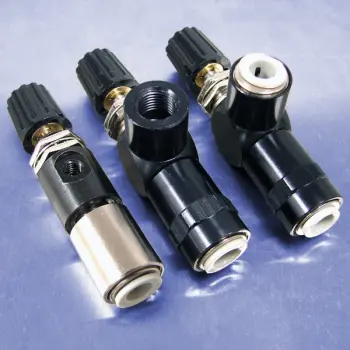

1/4" Push-in Input Port Flow Control Valves


Flow Control Valves are used in pneumatic circuits to reduce the rate of flow. Finely threaded stems gradually adjust the controlled flow to match the system requirements. Flow Control Valves control flow in only one direction while allowing free flow in the opposite direction.

Pneumadyne manufactures a variety of Flow Control Valves with several porting options for plumbing convenience.

  • Instrument quality knob
  • Black anodized and electroless nickel plated for corrosion resistance
  • Swivel ports accommodate critical aligment requirements
  • Panel mountable
  • Low cracking pressure
  • Compact size

    CAD Library

    Performance Data

    • Operating Pressure: 0 to 125 psi
    • Flow Rate: Ranges from 9.4 to 27 scfm at 125 psi depending upon valve selected.
