Push Button (1/8 NPT (F) Input, 2-Way Valves, Normally Closed)

Push Button (1/8 NPT (F) Input, 2-Way Valves, Normally Closed)

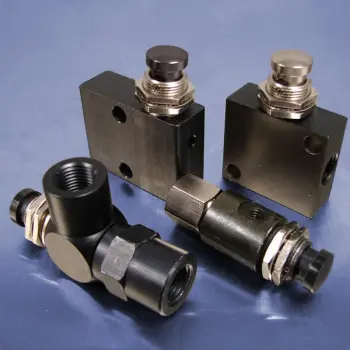

Pneumadyne manufactures a variety of 2-way valves with 1/8 NPT (F) ports to fit your application requirements.  Our highly reliable “0” Series valve, part number A0-20-4, features a swivel 1/8 NPT (F) input port for valve alignment purposes.  The “11” Series valves (part numbers start with A11) feature a swivel output port and push-in connections for plumbing convenience.  The “400” Series (part numbers starting with C04) offers several configurations of valves with 1/8 NPT (F) ports and can accommodate vacuum applications to 26” Hg. Choose either Standard or Rear porting to ease valve installation.  Nylon and metal buttons are offered to fit actuation requirements. Nylon push buttons are available in seven colors with black as standard. Contact the factory to order colored actuators.

Features
  • Swivel ports for critical valve alignment
  • Black anodized valve bodies for corrosion resistance
  • Plumbing versatility
  • Miniature size for limited space applications
  • Durable nylon or metal actuators
  • Nuts and lockwasher provided

    Performance Data

    • Operating Pressure: 26" Hg to 125 psi
    • Flow Rate: Ranges from 17.3 to 33 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
