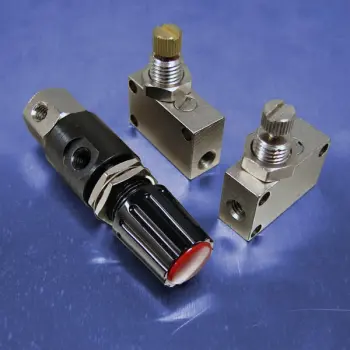

10-32 (F) Input Port Flow Control Valves

10-32 (F) Input Port Flow Control Valves

Flow Control Valves are used to reduce the rate of flow in a pneumatic system. Finely threaded stems allow the gradual adjustment of controlled flow to match system requirements. Flow Control Valves control flow in only one direction allowing free flow in the opposite direction.

Pneumadyne offers a variety of configurations with several flow rate options to accommodate application requirements.

Features
  • Anodized and electroless nickel plated for corrosion & wear resistance
  • Swivel input port for valve alignment ("0" Series valves only)
  • Compact size
  • Panel mountable

    CAD Library

    Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

    Performance Data

    • Operating Pressure: 0 to 125 psi
    • Flow Rate: Ranges from 6.2 to 9.4 scfm at 125 psi depending upon valve selected.

    Compliance
    WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
