Installing the Proper Regulator Conserves Air & Saves Energy

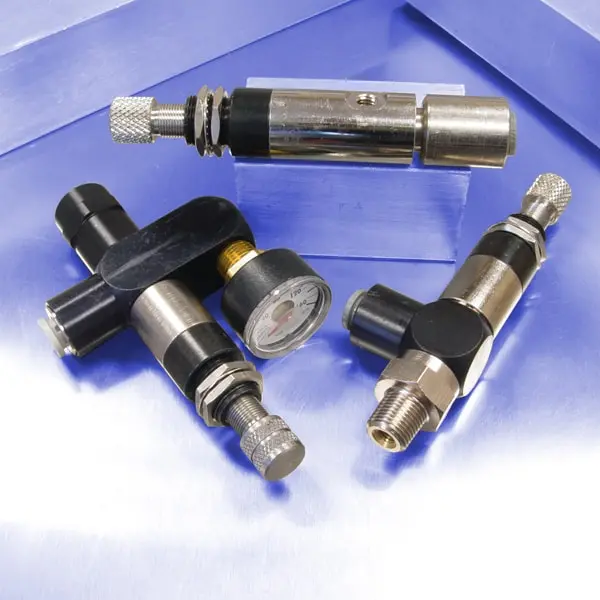

F_CV_Pressure_Regulators The primary purpose of a Pressure Regulator is to ensure that compressed air in a pneumatic system is not wasted.  Installing a regulator that is too large for your system will increase air usage and waste energy.  Therefore, properly sizing and setting your regulator is crucial for efficient air consumption.

To ensure that the appropriate regulator is used in your application, we recommend that you determine how much air the end actuator consumes to function properly (flow) and how much force is needed at that actuator (pressure).  Using this information, select a regulator that meets your flow rate requirements and then set it for the pressure needed at the actuator.  This simple process will result in efficient air usage and energy savings.

Another great way to reduce air consumption and save energy is to control cylinders with individual regulators rather than installing one large regulator.  The purpose or job of the cylinder will determine the amount of force needed at that location in the application.  Since these requirements can vary, installing individual regulators will allow you to set and use the exact amount of pressure required to accomplish the job.

Contact Pneumadyne for more information about our Pressure Reguators.
