Stud Fittings

Stud Fittings

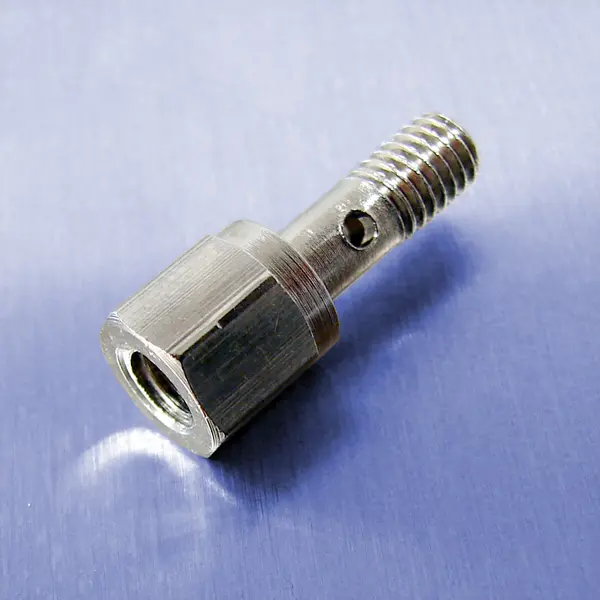

Two styles of Studs are available from Pneumadyne to fit your application requirements. Our popular captured o-ring design provides a superior seal and ensures a leak resistant fitting even when mated with a less than perfect sealing surface.

Features
  • Electroless nickel plated for corrosion resistance
  • Captured o-ring design
  • Precision machined
  • Durable brass construction

    CAD Library

    Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

    Performance Data

    • Operating Pressure: Vacuum to 125 psi
