M5 Threads (Elbow Fittings)

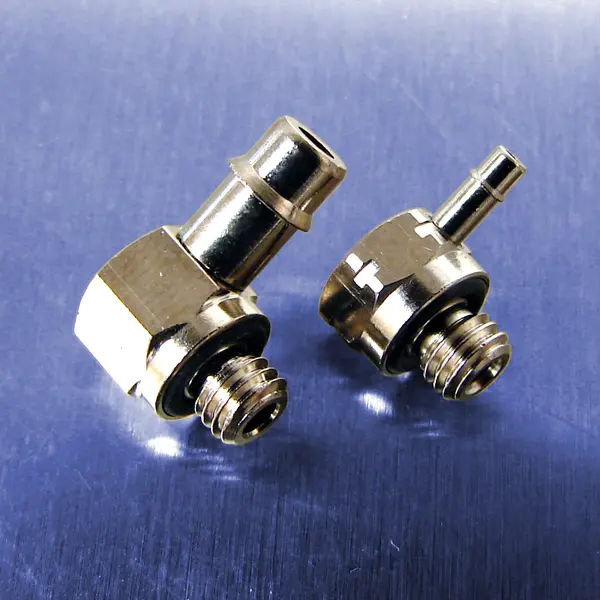

Pneumadyne manufactures Elbows with M5 threads and a variety of barb sizes to accommodate your application requirements. Our single-barb design provides a tighter grip and seal than traditional multiple barbs, resulting in permanent installation without the need for clamps. The captured o-ring produces a superior seal and ensures a leak resistant fitting.

  • Electroless nickel plated for corrosion resistance
  • Precision machined, high quality fittings
  • Recommended for use with Polyurethane tubing
  • Smoother approach angle eases tubing installation
  • Captured o-ring design ensures a leak resistant fitting


CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
