M3 Threads (Elbow Fittings)

Click image to enlarge

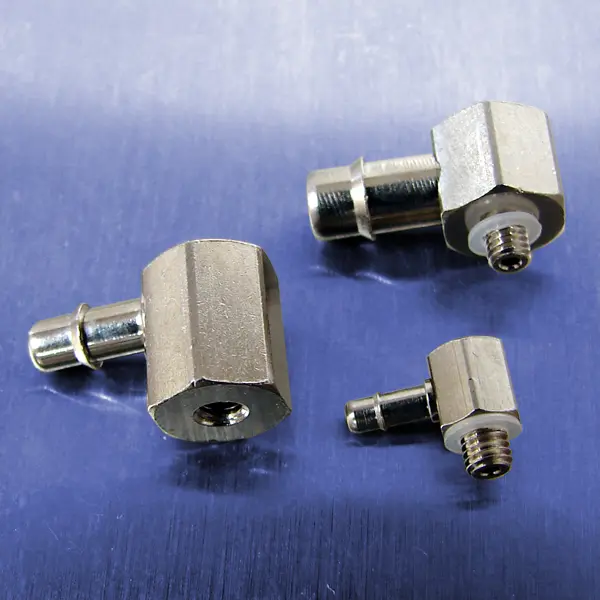

Elbows with M3 threads are offered with a wide range of barb sizes to fit tubing requirements. Pneumadyne's single-barb design provides a tight grip and seal, ensuring permanent tubing installation without the need for clamps. Nylon gaskets are installed with male threads for a leak resistant fit.

Features
  • Electroless nickel plated for corrosion resistance
  • Variety of barb sizes to fit tubing requirements
  • Smoother approach angle eases tubing installation
  • Recommended for use with Polyurethane tubing
  • Precision machined, high quality fittings
  • Nylon gasket installed

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
