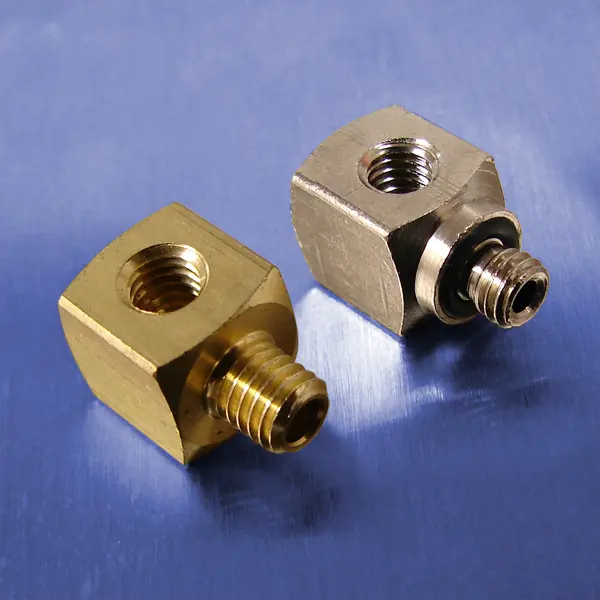

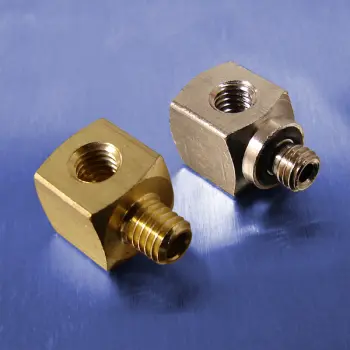

Fixed Threaded Elbows

Click image to enlarge

Two styles of Fixed Elbows are available to fit your application requirements. Pneumadyne's SBF-32-1 features a captured o-ring which provides a superior seal and ensures a leak resistant fitting. This precision machined fitting is electroless nickel plated for corrosion resistance. The 32-1 features our unique tapered 10-32 thread which produces a seal similar to pipe thread.

  • Precision machined, high quality fittings
  • Durable brass construction
  • Captured o-ring provides a superior seal

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on
