Elbows (Stainless Steel Barb Fittings)

Elbows (Stainless Steel Barb Fittings)

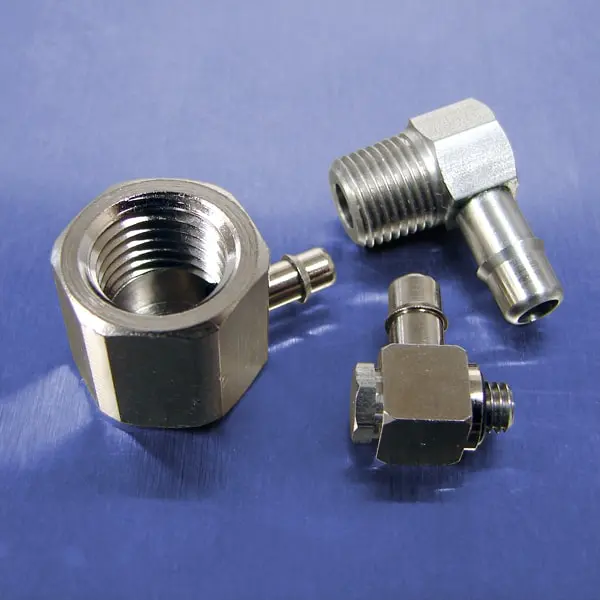

303 Stainless Steel Elbows are available in a variety of sizes and configurations to accommodate application requirements. Pneumadyne's single-barb design provides a tight grip and seal for permanent polyurethane tubing installation without the need for clamps. A smoother approach angle also eases installation. Our popular captured o-ring provides a superior seal and ensures a leak resistant fit.

Contact the factory for configurations not shown.

Features
  • Precision machined, high quality fittings
  • Variety of barb sizes to fit tubing requirements
  • Captured o-ring provides a superior seal
  • Single barb design for tighter grip and seal

    Products

    Scroll

    Return to Top

    Performance Data

    • Operating Pressure: Vacuum to 125 psi
    • Flow Rate: Download Performance Data Spec Sheet for detailed information

    Return to Top

    Product Files

    Return to Top

    CAD Library



















    Return to Top
