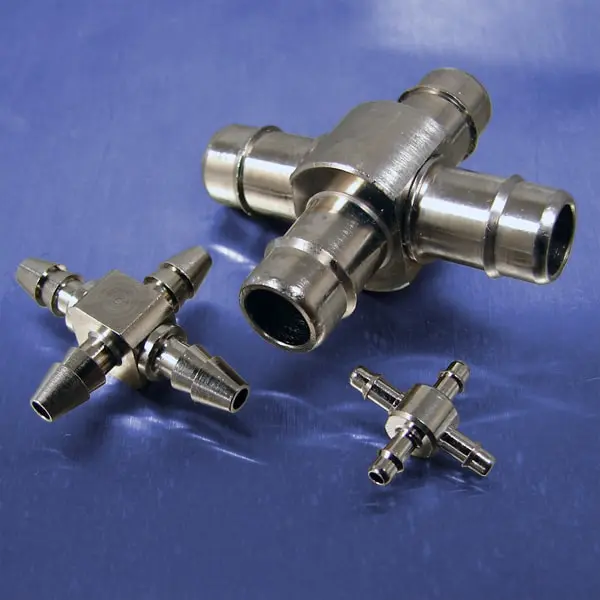

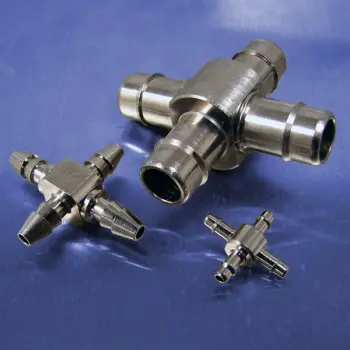

Crosses (Barb to Barb)

Click image to enlarge

Pneu-Edge® Crosses manufactured by Pneumadyne are available in a wide variety of sizes to meet your fitting needs. Our popular single-barb design provides a tight grip and seal for a permanent tubing installation without the need for clamps. Pneumadyne fittings are precision machined from brass and electroless nickel plated for corrosion resistance.

  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Variety of barb sizes to accommodate tubing
  • Precision machined, high quality fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
